Application Diagrams
-
- Basic Personal Monitor Mix-16 Ch Analog
-

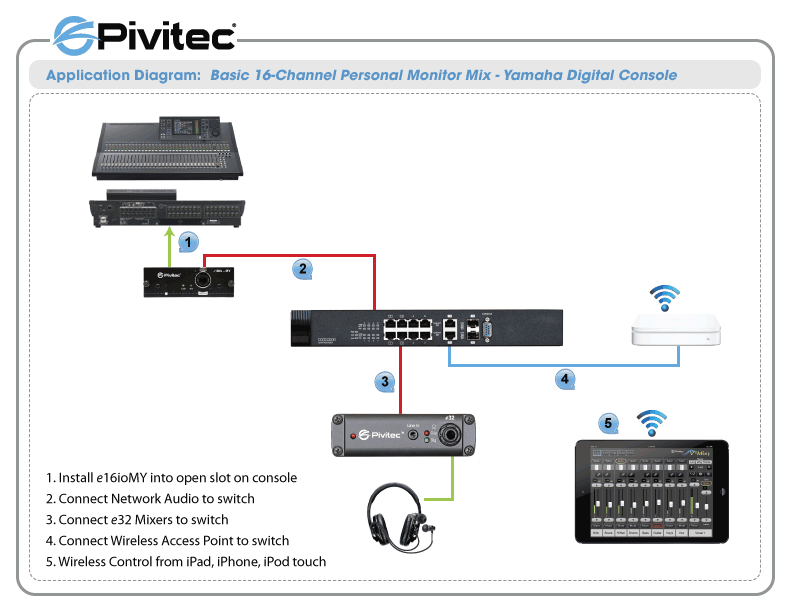

- Personal Monitor Mix-16 Ch Yamaha Digital
-

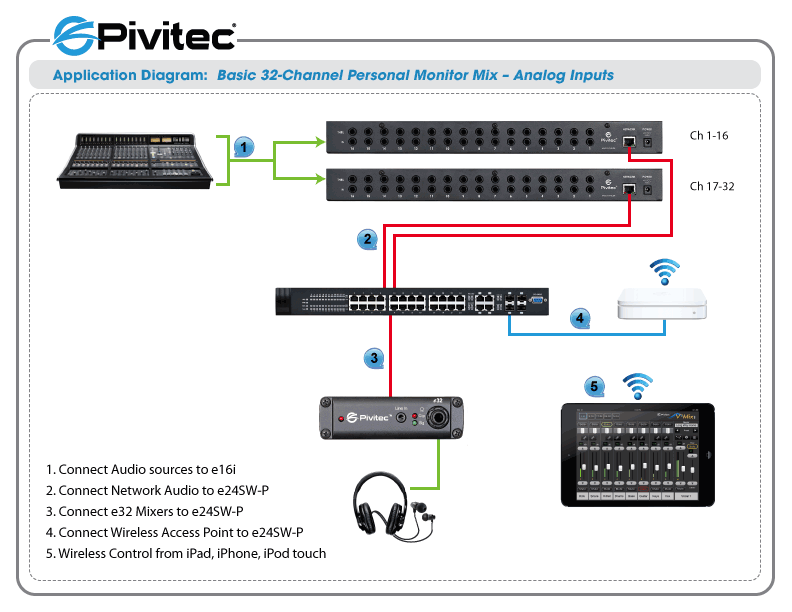

- Personal Monitor Mix-32 Ch Analog
-

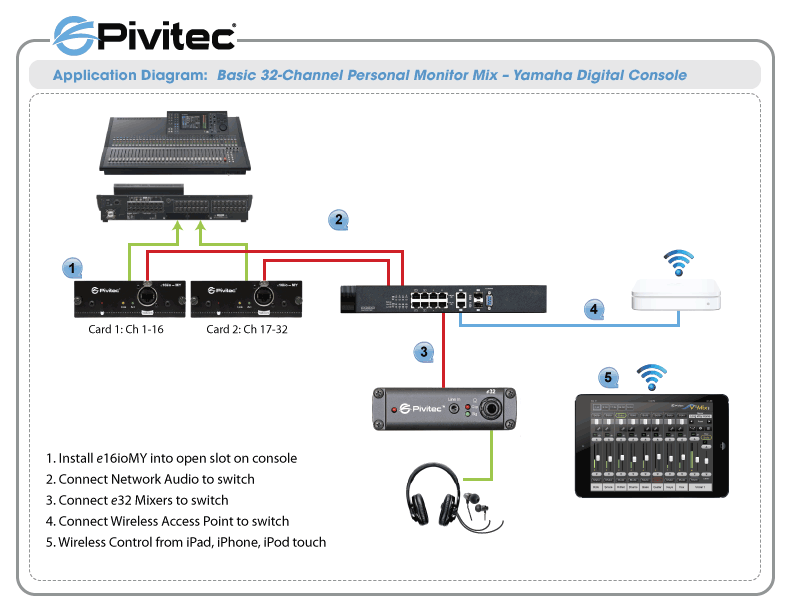

- Personal Monitor Mix-32 Ch Yamaha Digital
-

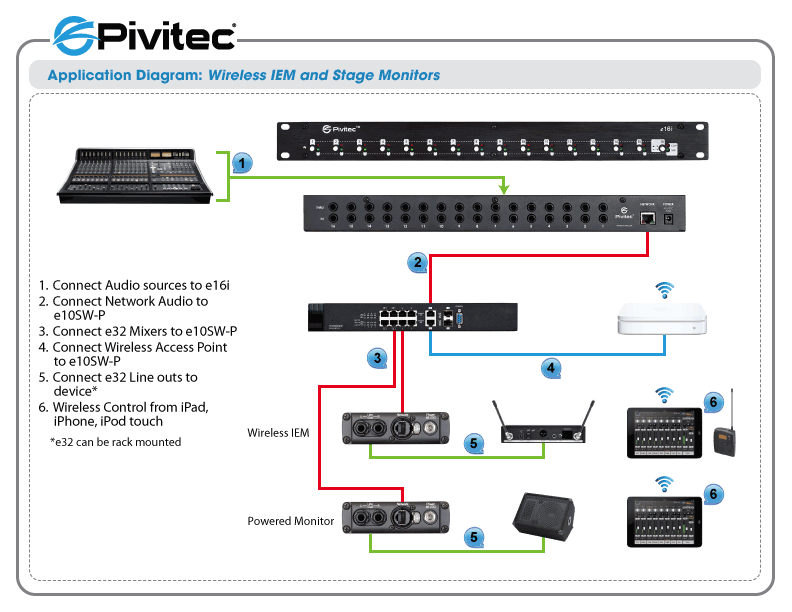

- Wireless IEM & Stage Monitors
-

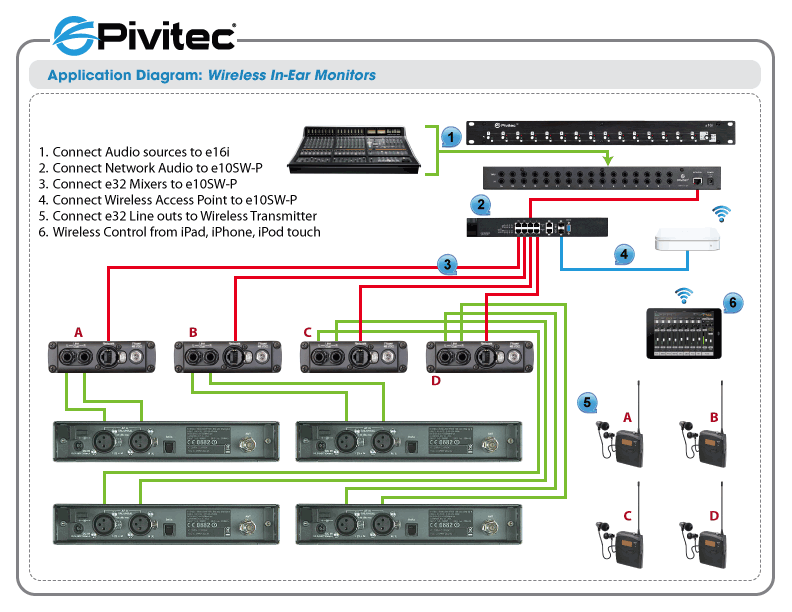

- Wireless In-Ear Monitor
